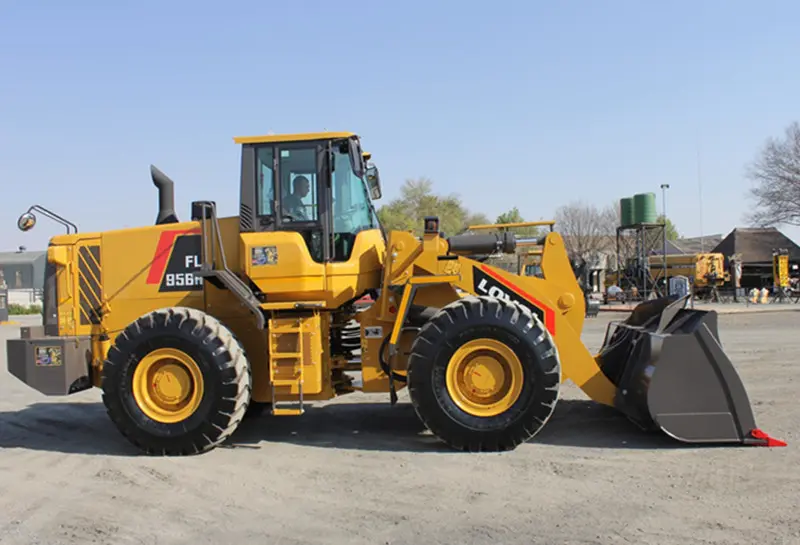

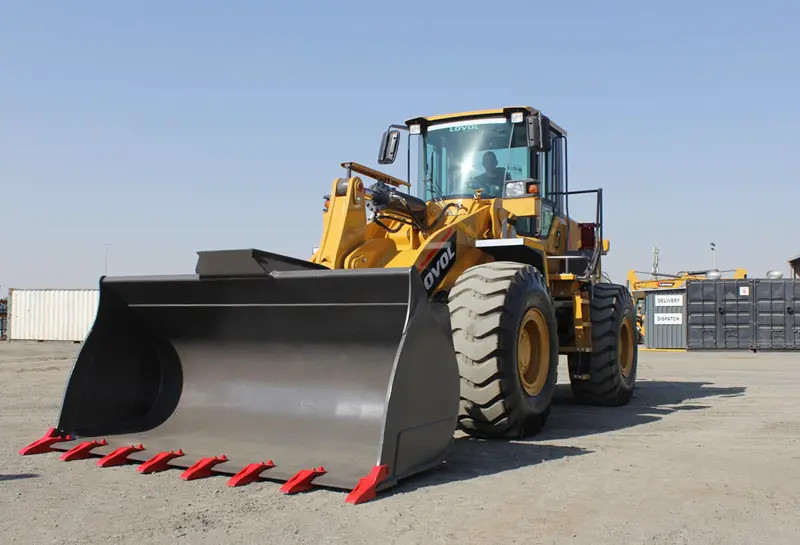

Lovol loader FL956H

Description

OUTLINE
Applied the advanced outline designing method, the truck is designed with stream, sporty outline, and thanks to the new design, all the exposed parts are metal made, which is firm and reliable.

SAFETY
Thanks to the long wheelbase design, the longitudinal stability of whole truck is improved, the residual load capacity at same height is improved greatly. At the same time, it prolongs the working life time of steering tyre by reducing the rear axle load.

COMFORTABLE
The smaller steering wheel, extra space for foot and operator space, wider forward visibility, all these improve operator’s
comfort and release operator’s fatigue.
The applied integral engine cover strengthens the rigidity of the cover and reduces the noise at the same time.

Vehicle Details

 Parameter
 Foton lovol FL956H
 Operating Weight(kg)
 16970
 Bucket Capacity(m3)
 3.3
 Rated Load(kg)
 5500
 Max. Traction Force(kN)
 160
 Max. Breakout Force(kN)
 165
 Max. Gradeability(°)
 30
 Dumping Angel(°)
 44
 Lifting Height(mm)
 5645
 Max. Dumping Height(mm)
 3100
 Dumping Reach(mm)
 1160
 Mini. Ground Clearance(mm)
 440
 Wheel Tread(mm)
 2150
 Wheel Base(mm)
 3300
 Mini. Turning Radius of Outside Tire(mm)
 7020
 Dimension(L×W×H mm)
 8360×2980×3380
 Engine Model
 Weichai WD10G220E24
 Cylinder No.-Cylinder Dia.×Stroke(mm)
 6-126*130
 Max. Torque (N·m)
 900
 Rated Power(kW)
 162
 Rated Speed (rpm)
 2000
 Transmission Type
 Mechanical shifting planetary
 No. of Gears
 Front2back1
