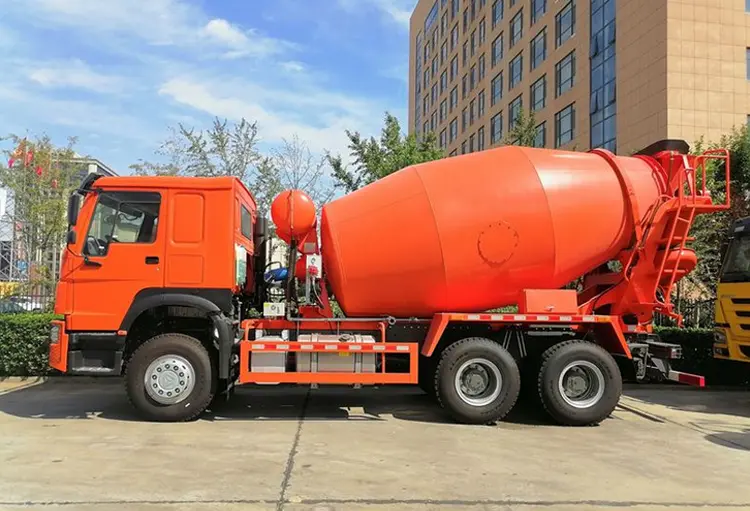

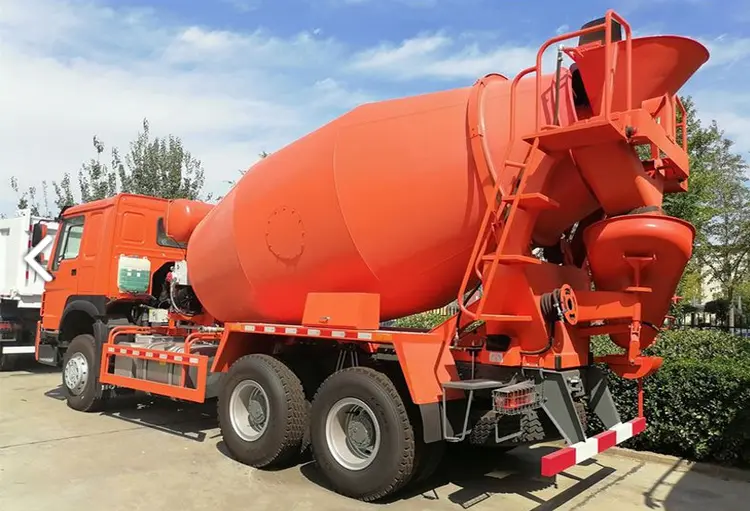

Sinotruk transit mixer

Description

Sinotruk transit mixer body cubic meter from 6m3 to 16m3, main parts adopt the famous brand parts, such as EATON motor and pump, BONFIGLIOLI brand reducer etc.
-. The gearbox application with HW70 power take off (PTO) supply power to make tanker body unloading.
-. With air suspension seat, can reduce the driver’s driving fatigue and improve driving safety.

The SINOTRUK HOWO 9m3 concrete mixer truck specification only for your reference, we will recommend other model Sinotruk transit mixer basic your request.

Sinotruk transit mixer Tanker Body The inner part of the tank is divided into eight parts, including the sealing tube, the blade, the mixing blade, the head plate, the mixing drum shell, the mixing drum raceway, the connecting flange, and the manhole. The blades of the mixing drum shell are made of special high-strength wear-resistant steel plates, which have extremely high wear resistance.

Vehicle Details

 Brand

 SINOTRUK

 Product name

 Sinotruk howo concrete mixer truck 10m³

 Truck model

 ZZ5257GJBN3847W

 Engine model

 WD615.47,371hp,euro 2

 Driving Position

 Left/Right

 Type

 Water-cooled,four strokes,6 cylinders in   line,turbocharged, directly injection

 Total Weight

 25,000kg

 Curb Weight

 10580

 Max speed(km/h)

 78

 Front/ Rear axle

 HF9/HC16

 Gear Box

 HW19710,10 forwards and 2 reverse

 Dimension(Lx W xH)(unloaded)(mm)

 9040x2496x3980

 Overhang(front/rear) (mm)

 1500/2365

 Wheel base (mm)

 3825+1350

 Tyres

 12.00R20/ Tubeless tire 10+1

 Drum rotation speed

 0-14r/min

 Feeding Speed

 >3.5m3/min

 Water Tank Volume

 400L

 Discharge Remain Ratio

 <0.2%

 Water supply

 Pressing type
